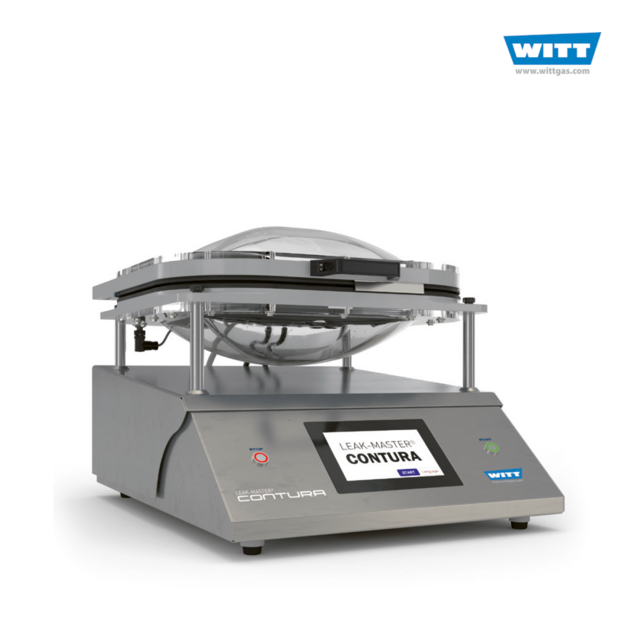

LEAK-MASTER® CONTURA is a system for seal inspection in capsules, MAP- and other types of packaging.

Using a patented method that detects volume changes based on pressure differentials, it enables the non-destructive detection of even the smallest leaks, independent of test gases, in the food and pharmaceutical industries. An LED indicator intuitively displays the test result. Flexible membrane system for universal test method on all packaging types.

Benefits

• fine leaks (size <10 μm) can be detected in seconds
• detection of gross leaks even in packages with little headspace
• non-destructive leak testing in a matter of seconds
• storage and evaluation of seal testing results after the testing process
• designed according to DIN ISO certified documented output inspection
• large touch-screen for intuitive operation
• packaging tests of individual or multiple packages simultaneous
• built-in vacuum pump, no compressed air
• simple and safe cleaning to meet the strict hygiene requirements of the food industry

Options

• Barcode Reader with IP-protection for simple and quick user/product selection
• calibration means
  - Pac-Check for the leak rate calibration
  - Calibration-Kit for leak rate and also the internal and external volume calibration
