减压阀 MINI

精准小流量减压

  • 设计紧凑,压力稳定
  • 符合EIGA和CGA的氧气应用安全等级
  • 适合用于分析仪、小型燃烧器系统、采样管路等
  • 用于管路或面板安装
  • 调节旋钮可锁定
  • 有 "排气 " 和 "不排气 "两种版本

技术资料 下载
报价咨询

信息

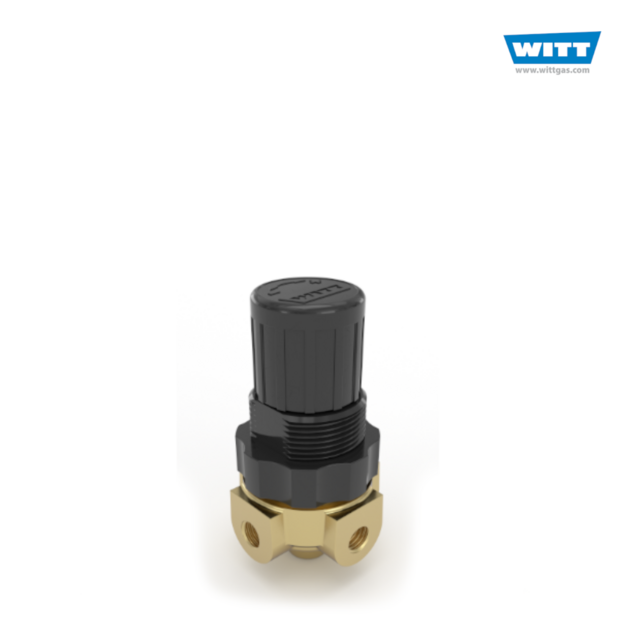

PRESSURE REGULATOR MINI -3, -10, -16

Compact pressure regulator for precise control of low flow rates. Extremely reliably by high manufacturing quality and 100% tested. Highest level of safety for Oxygen applications cause desingnet and cleaned for oxygen according to EIGA, CGA and AIGA.

Features

  • applicable for

  - oxygen O2
  - hydrogen H2
  - methane CH4
  - propane C3H8
  - carbon dioxide CO2
  - mixtures from nitrogen/hydrogen N2/H2
  - other air gases

  • lockable adjustment knob

Perfect suited for

  • analysis technology
  • small burner systems
  • sampling
  • dosing
  • use as pilot pressure regulator
  • for installation in pipelines and panel mounting

Options

  • stainless steel version
  • medical applications (FDA-approved elastomers available)
  • pressure gauge included

Technical features

  • brass
  • spring-loaded diaphragm
  • G 1/8" female connections
  • maximum inlet pressure 25 bar
  • outlet pressure ranges 0.5-3 bar, 0.5-10 bar, 0.5-16 bar
  •  -30 °C to +60 °C
  • designed for Oxygen Service in accordance with EIGA 13/20, CGA G-4.4 and AIGA 021/20: Oxygen Pipeline and Piping Systems
  • cleaned for Oxygen Service in accordance with EIGA 33/18, CGA G-4.1 and AIGA 012/19: Cleaning of Equipment for Oxygen Service
  • version in “relieving” and “non-relieving” selectable

Company certified according to ISO 9001, ISO 22000 and PED 2014/68/EU Module H.
ATEX 2014/34/EU with ignition hazard analysis according to EN 1127-1, DIN EN 13463-1 and ZH1/200.
