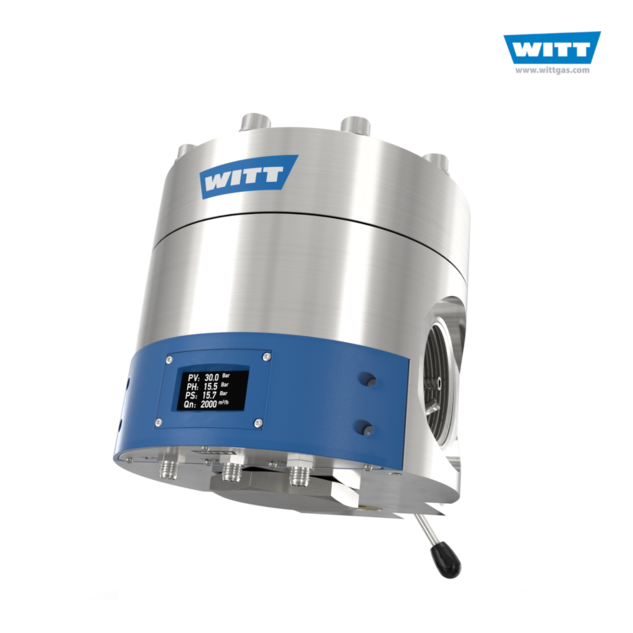

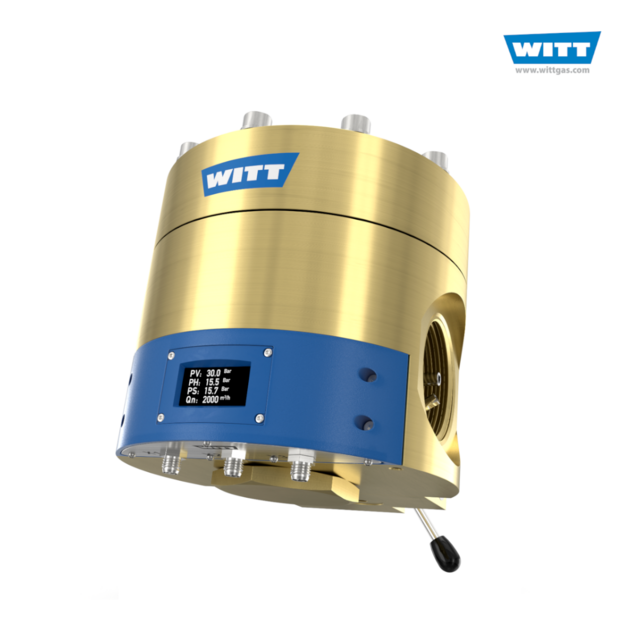

Dome Pressure Regulator 757LE/S SMART, complete solution with smart features

witt_dome_pressure_regulator_757_set_smart

witt_dome_pressure_regulator_757_set_smartwitt_dome_pressure_regulator_757_set_smart
技术资料 报价咨询

2" connections, Kv value 15 / Cv value 17.4, 4-20 mA signals

  • maximum pressure stability even during flow and temperature fluctuations
  • outlet pressure 0.5-30 barg
  • smart features for process optimisation and IoT integration
  • signaling and display of inlet and outlet pressure and temperature
  • signaling and display of pilot gas pressure
  • indication of gas flow rate

For technical backgrounds and lots more see our video

信息

High performance dome-loaded pressure regulator set for inline installation,combined with high-tech sensor technology and electronic components. The dome pressure regulator 757LE/S SMART can signal, for example, pressures, temperatures and an indication of the flow rate. These signals can be used to optimize performance, safety and maintenance regimes.

WITT dome pressure regulator technology is unique in the world as it offers maximum pressure constancy even at high and fluctuating flow rates or with small differences between inlet and outlet pressure. Now the dome pressure regulator 757LE/S is also available with smart functions: Important operating parameters can be displayed via 4-20 mA signals, enabling the gas supply to be monitored and optimised. Continuous data logging enables quality control and is an important step towards networked production.



Features of WITT dome pressure regulator technology

The extraordinary pressure constancy of WITT dome pressure regulators is the result of a complex technology consisting of perfectly matched components:

  • Pilot Control Tube (PCT): One of the features enabling highly accurate control of outlet pressure
  • Balanced Seat Design (BSD): Further enabling control precision, high reliability and low maintenance
  • A complete solution, ready to use: With integrated pilot pressure regulator, completely assembled and tested
  • Own-medium controlled: Enabling autonomous operation (no separate gas supply required)
  • Closed system: Self-relieving design, but no gas is released to atmosphere



Smart Features

In the smart dome pressure regulator, temperature and pressure values are captured by high-tech sensors and transmitted via 4-20 mA signals. Depending on customer requirements, the following features are available individually or combined:

  • Signaling and display of inlet pressure (P1) and outlet pressure (P2) in bar and temperature (T1 and T2) in °C
  • Signaling and display of the pilot pressure (P3)
  • Indication of the instantaneous gas flow rate (FR) in Nm³/h

Model variations Smart

Features

„Standard“

Display, indication of inlet pressure and temperature as well as outlet pressure and temperature

„Standard + P3“

"Standard" features, plus indication of pilot pressure

„Standard + Flow“

"Standard" features, plus indication of flow rate calculation

„Standard + P3 + Flow“

"Standard" features, plus indication of pilot pressure and flow rate

Approvals
Company certified according to ISO 9001, ISO 22000 and PED 2014/68/EU Module H
CE-marked according to PED 2014/68/EU
Designed for Oxygen Service in accordance with EIGA 13/20 and CGA G-4.4: Oxygen Pipeline and Piping Systems
Cleaned for Oxygen Service in accordance with EIGA 33/18 and CGA G-4.1: Cleaning of Equipment for Oxygen Service

Optional
Analyzed for Food Safety per HACCP-Analysis
Fulfils the requirements of EU Regulations (EC) 1935/2004, and (EC) 2023/2006
Fulfils the requirements of German Food and Feed (LFGB) Law, and is suitable for contact with food gases
