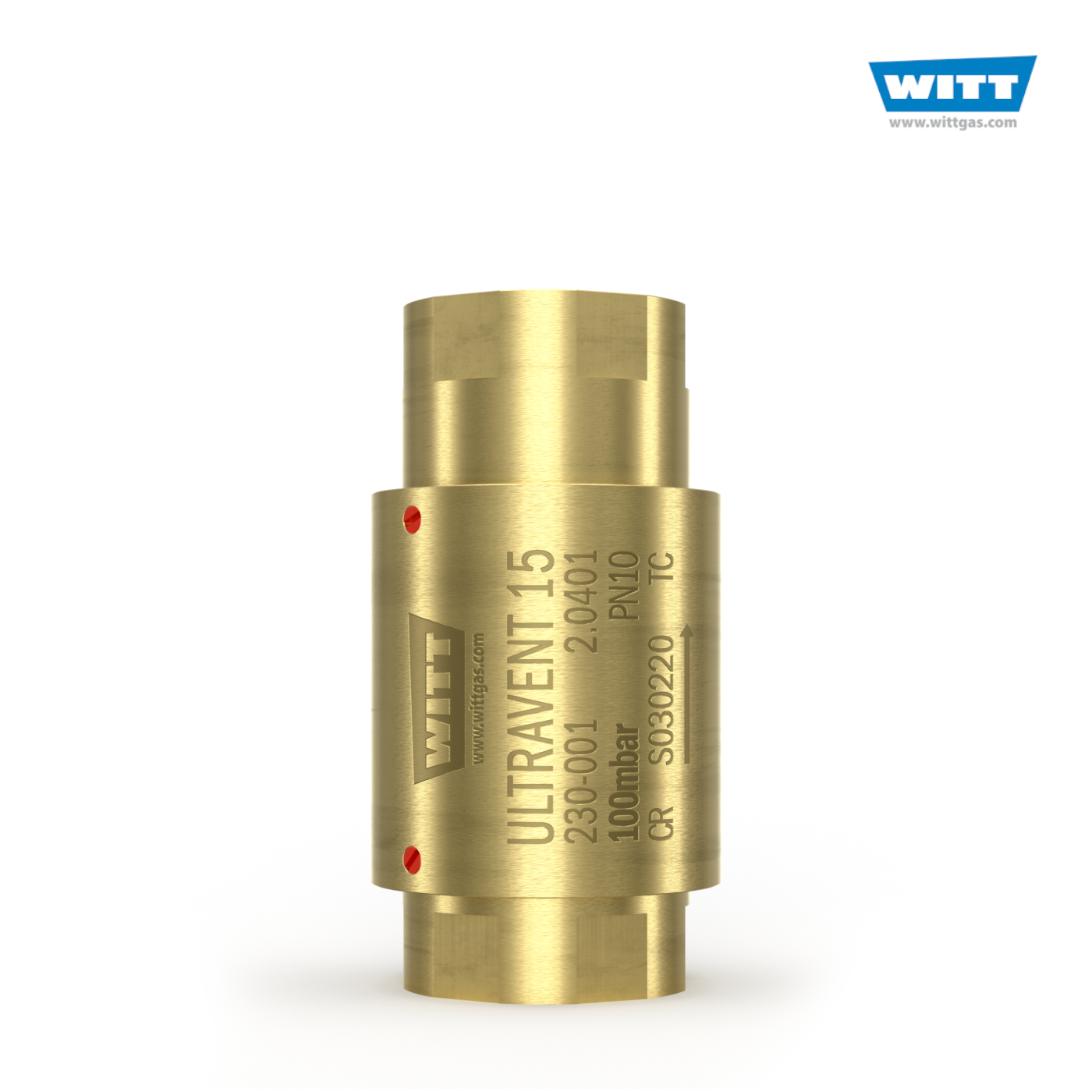

Safety Relief Valve ULTRAVENT 15

Safety Relief Valve for venting excess pressure from receivers, pipelines and other equipment, 5 up to 500 mbar, G 1/2 or 1/2" NPT threads

  • spring-loaded, direct-acting safety relief valve
  • flow-optimised valve system for maximum blow-off capacity
  • every safety relief valve 100% tested
  • TÜV-certification of pressure setting
  • tested according to DIN EN ISO 4126-1
  • can also be used as a control valve or as a vacuum breaker

技术资料 下载
报价咨询

信息

Spring loaded, direct acting safety relief valve, optionally based on DIN EN ISO 4126-1, for venting excess pressure from receivers, pipelines and other equipment. Very compact, safe and reliable. Every safety relief valve 100% tested.

Benefits:

  • exact, individually adjustable opening pressure from 5 up to 500 mbar
  • much smaller than previous designs
  • high blow-off volume flow
  • reliability tested over 100 000 cycles
  • G 1/2 or 1/2" NPT threads
  • pressure rating PN10
  • free of oil and grease
  • can be used as a control valve
  • can also be used as a vacuum breaker

Options:

  • tested according to DIN EN ISO 4126-1
  • 100 µm filter in the gas inlet (1.4301)
  • strainer at outlet 100 µm (1.4301) prevents external contamination
  • TÜV-certification of pressure setting
  • available in brass or stainless steel (ES)
  • temperature: -30 - 100 °C (PEEK – valve disc, seals NBR, CR)

Approvals:

Company certified according to ISO 9001 and PED 2014/68/EU Module H. Designed for Oxygen Service in accordance with EIGA 13/20 and CGA G-4.4: Oxygen Pipeline and Piping Systems. Cleaned for Oxygen Service in accordance with EIGA 33/18 and CGA G-4.1: Cleaning of Equipment for Oxygen Service

Other models, options and accessories available upon request.

Please identify the individual gases, temperature and opening pressure at the time of enquiring!
