气体过滤器 LE6

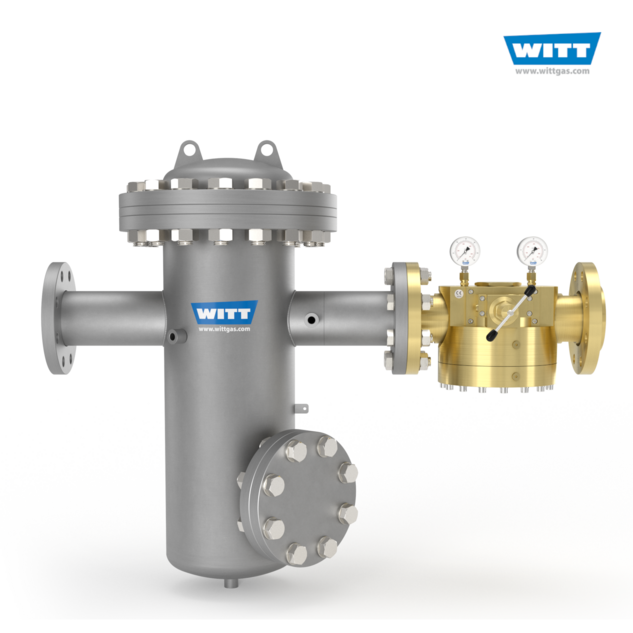

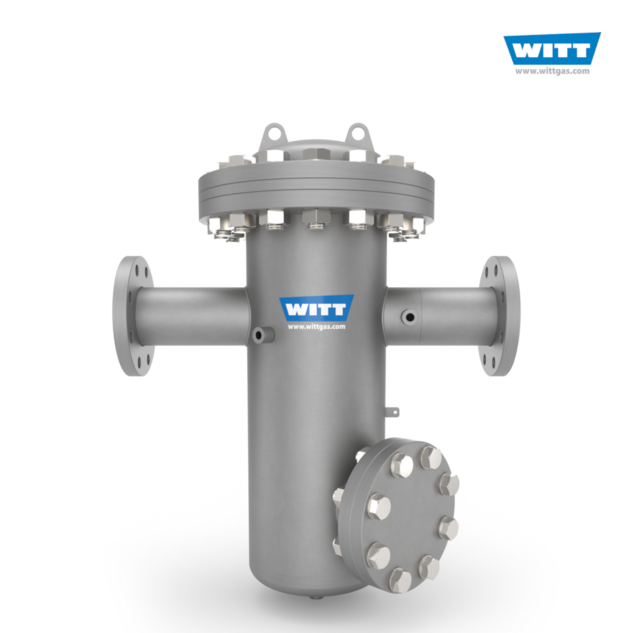

WITT gas filter LE6 protects downstream components and systems f rom contamination and condensates.
Its size allows high flows with low pressure drop and compliance with the EIGA, AIGA and CGA maximum velocity limits.

Benefits

• ultra fine filtering out of mechanical impurities through bronze filter inserts
• broad range of applications – compatible with many technical gases
• change of filter possible while installed due to user-friendly design
• high flowrate owing to flow-maximising design (4 500 Nm3/h for O2 at 30 bar and 50 mbar pressure drop)
• condensates can be collected and removed using condensate drain
• optimized design for easy installation and maintenance
• extended flange connections for the simplest possible mounting of this heavy unit
• connections on the inlet and outlet side to allow for pressure monitoring
• reliable filtering performance increases service life of downstream components and equipment

Operation / Usage

• Gas filters are designed for installation in pipelines
• must be installed vertically

Maintenance

• condensates should be drained at regular intervals
• filter inserts must be checked regularly and replaced if necessary

Options

• electronic differential pressure monitoring

Approvals
Company certified according to ISO 9001 and PED 2014/68/EU Module G
CE-marked according to: PED 2014/68/EU
Designed for Oxygen Service in accordance with EIGA 13/20, CGA G-4.4 and AIGA 021/20: Oxygen Pipeline and Piping Systems
